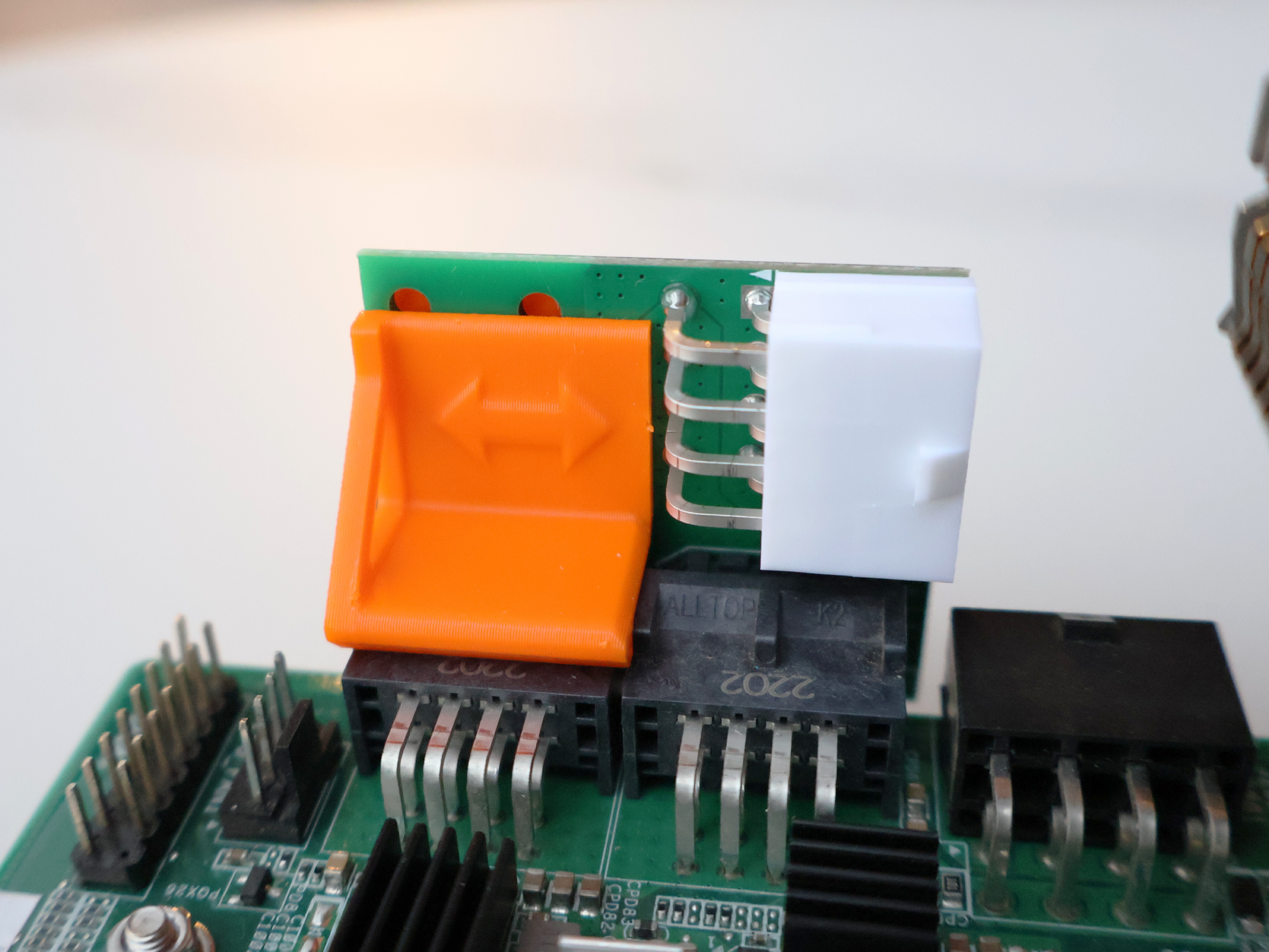

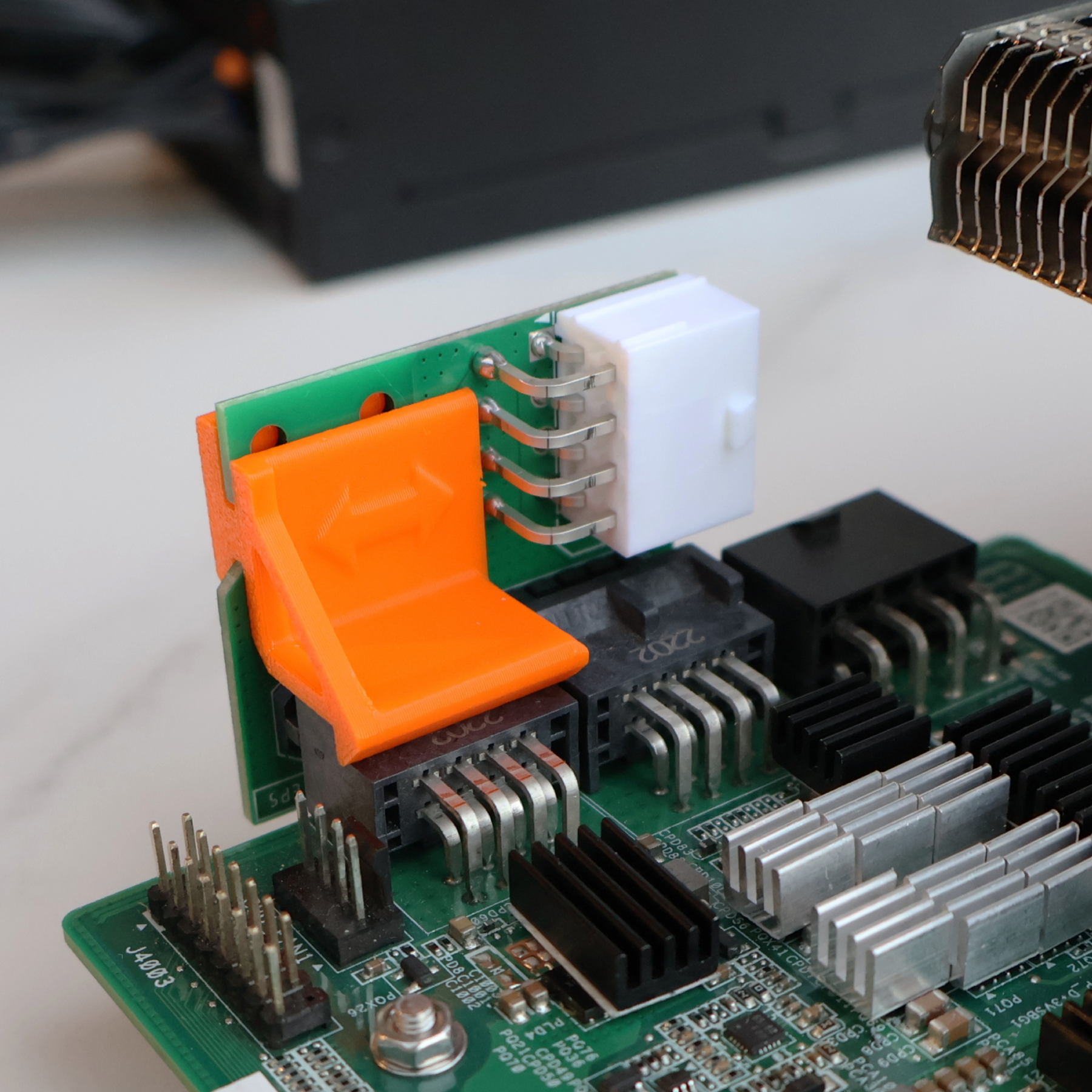

Adapter designed to distribute the power load between the BC250's power connectors.

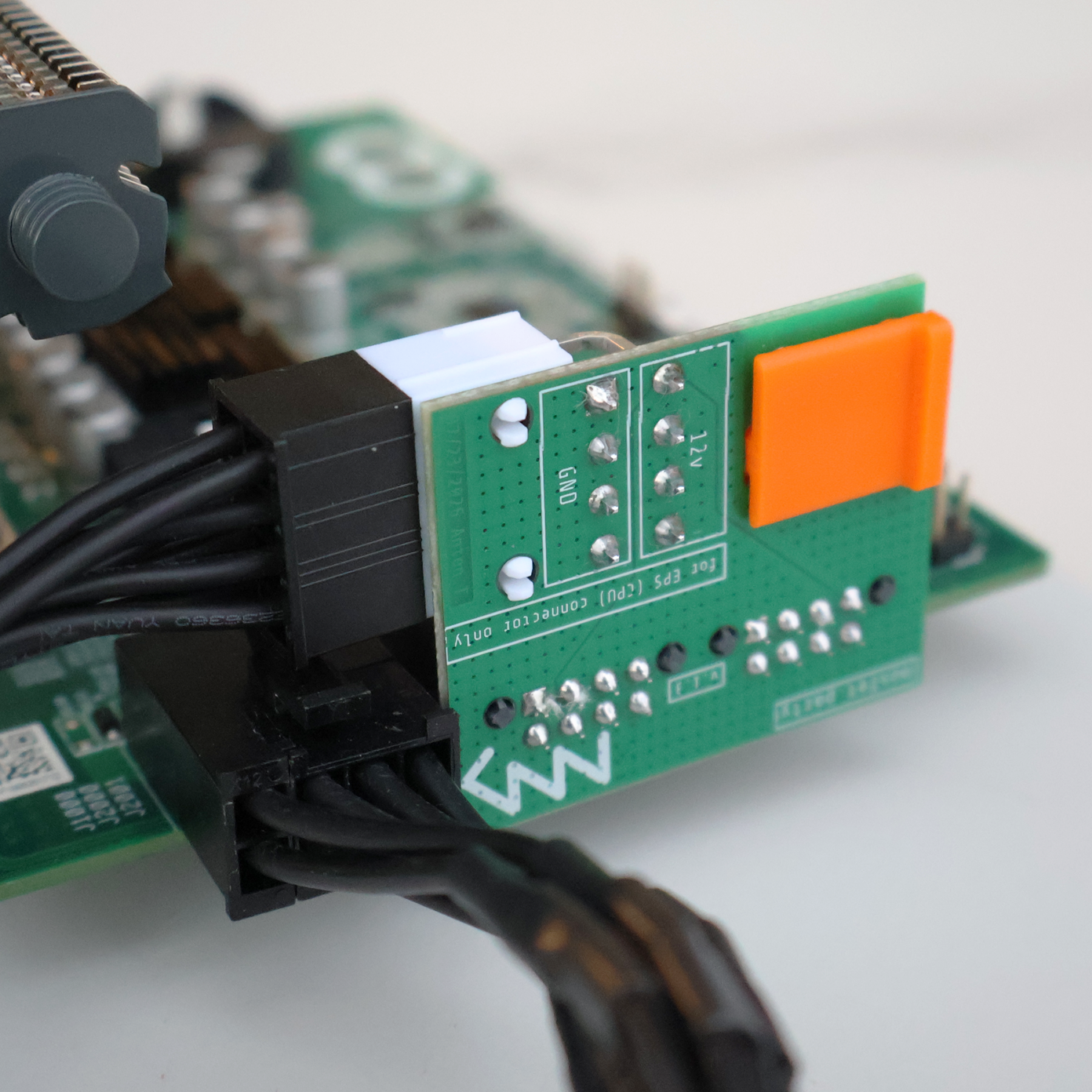

Input: 8-pin EPS (CPU) Output: 2× Molex Micro-Fit
⚠️ Important:
!!! Do not connect a PCIe 8-pin connector to this adapter !!! PCIe and EPS connectors have different pinouts and normally should not fit, but a PCIe connector can potentially be forced into the adapter. Do not force the connector. If you are not sure which cable you have, please ask me on Discord before connecting it.

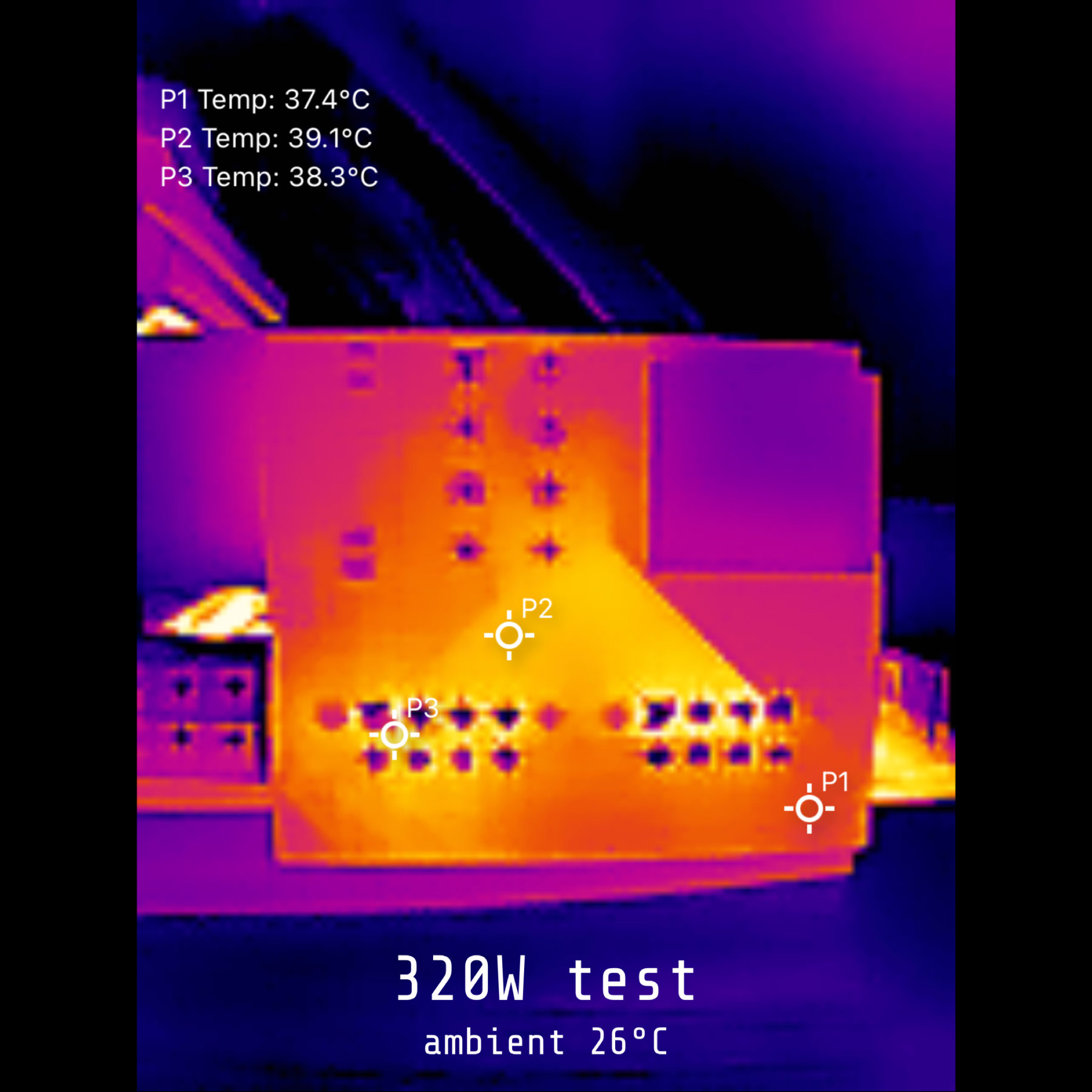

The thermal image shows the adapter temperature when the BC250 was powered entirely through the adapter, without using the built-in PCIe 8-pin connector. This configuration was used for testing purposes only and must not be used during normal operation.

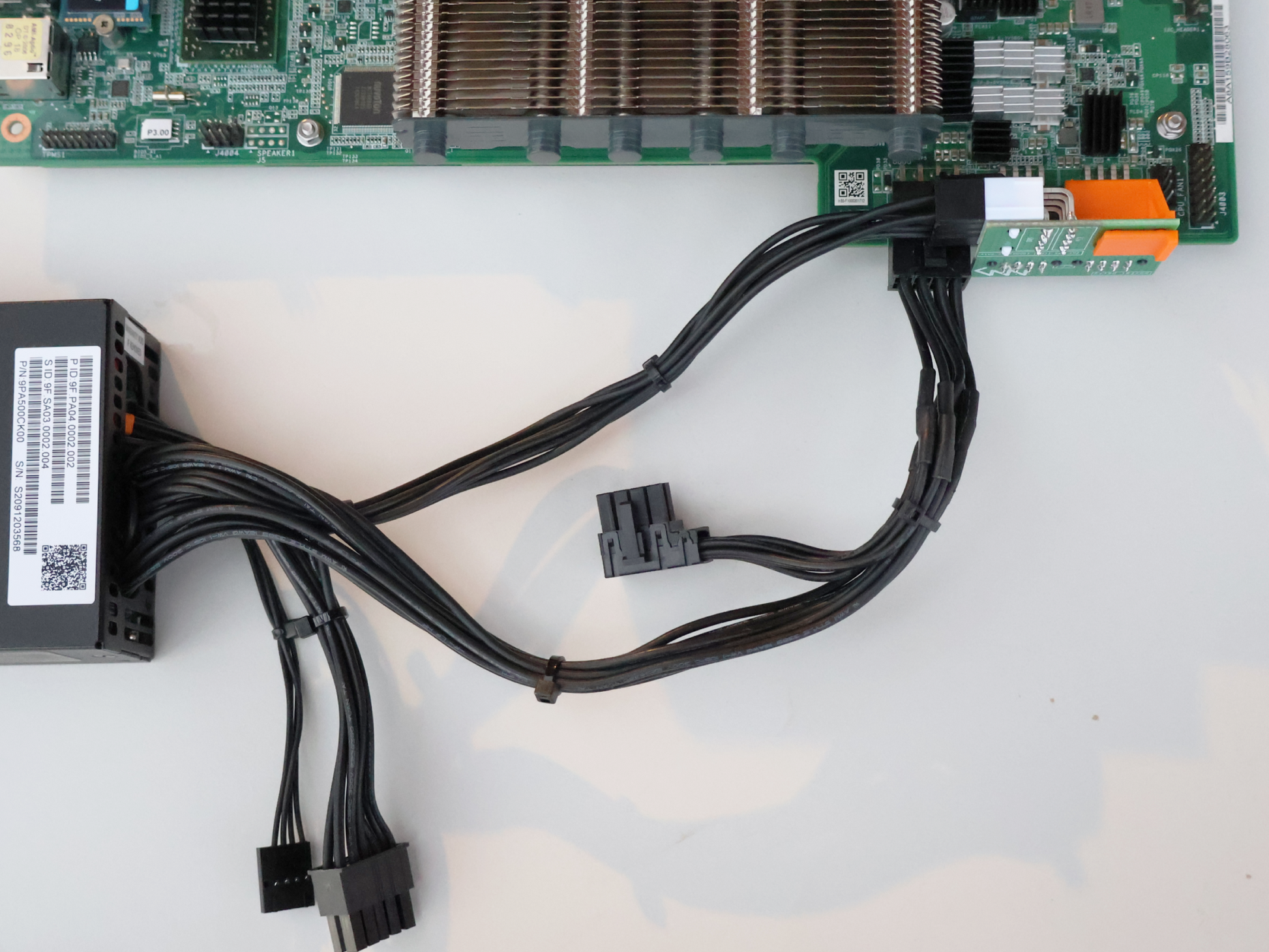

Always use this adapter together with the built-in PCIe 8-pin connector on the BC250. This allows the power load to be shared between the connectors.
✅ Batch 1 - dispatched August 17st ✅ Batch 2 - dispatched August 27th
